Rill MCP Server

The Rill Model Context Protocol (MCP) server exposes Rill's most essential APIs to LLMs. It's currently designed primarily for data analysts, not data engineers, and focuses on consuming Rill metric views—not creating them.

Why use MCP with Rill?

Instead of blindly exposing your entire data warehouse to external platforms in hopes of uncovering trends, Rill's MCP server provides a structured and governed alternative. By querying data that already has pre-defined measures and dimensions, the responses you get are guaranteed to be as accurate and consistent as the metrics displayed in your Rill dashboards.

You can also add ai_instructions to your project file and metrics views, which will give your LLM additional context on how to use the Rill MCP Server for best results. Users can then ask questions like:

What are my week-on-week increases or decreases in sales of XYZ service?
During the current year, do I have any outliers in website views? What might this correlate to?
In the previous quarter, compared to the current ongoing quarter, what are the trends for customer access?
In the last 7 days, how many auction requests were there from mobile vs desktop?

This ensures trustworthy, governed analytics while empowering users to self-serve answers to everyday business questions—without delays caused by email chains or ticket requests. The result: greater team productivity, clearer data ownership, and faster, more confident decision-making across your organization.

Installation

Prerequisites

To use the Rill MCP server, you'll need:

An MCP client (we recommend Claude Desktop, but you can use any compatible client. Why?)
A running Rill project (locally or hosted on Rill Cloud)
Node.js, which can be downloaded from nodejs.org

Create a Rill Personal Access Token (if your project is on Rill Cloud)

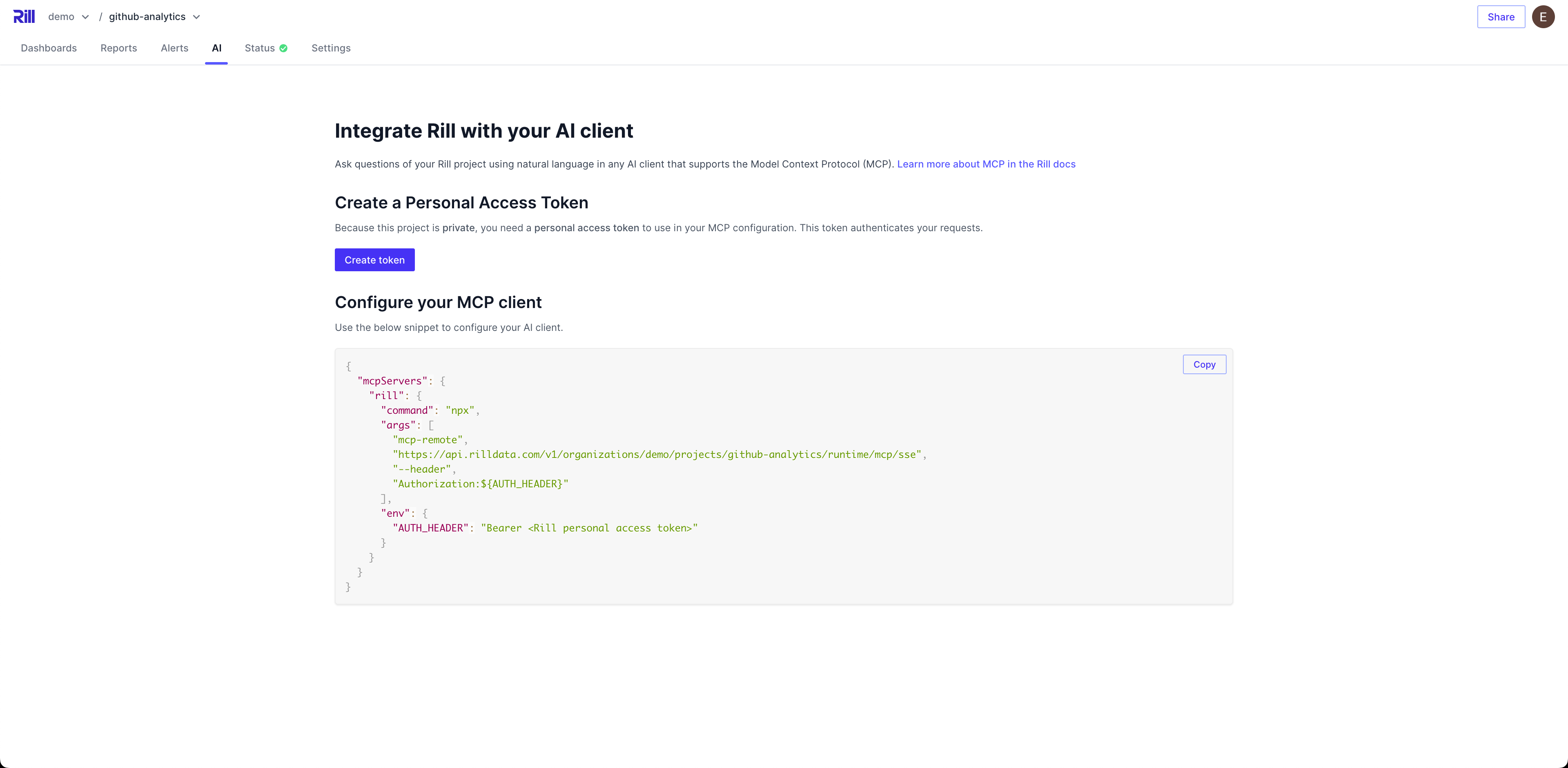

You can navigate to the AI tab in your project to retrieve both the JSON and create a Rill personal access token.

Alternatively, if you want to create the token via the CLI:

# Install the Rill CLI if you haven't already
curl https://rill.sh | sh

# Create a token
rill token issue

Configure Claude Desktop

warning

As of 2025/05/08, it's recommended to use Claude Desktop as your MCP client. Cursor currently struggles to compose complex structured payloads (see issue), and Windsurf often thinks it can find the answer in your current code project. Other MCP clients have not yet been tested.

Edit your claude_desktop_config.json file. By default, the JSON is found in the following directories:

macOS: /Users/{USER}/Library/Application Support/Claude/claude_desktop_config.json
Windows: C:\Users\{USER}\AppData\Roaming\Claude\claude_desktop_config.json

config.json

Depending on which Rill instance you are trying to connect to (locally running Rill Developer, public Rill project on Rill Cloud, or private Rill project on Rill Cloud (default)), the configuration will vary. For Rill Cloud deployed projects, you can navigate to the AI page to retrieve the config.json.

Private Rill Project on Rill Cloud

Replace org and project with the ID of your organization and project.

{
    "mcpServers": {
        "rill": {
            "command": "npx",
            "args": [
                "mcp-remote",
                "https://api.rilldata.com/v1/organizations/{org}/projects/{project}/runtime/mcp",
                "--header",
                "Authorization:${AUTH_HEADER}"
            ],
            "env": {
                "AUTH_HEADER": "Bearer <Rill access token>"
            }
        }
    }
}

Public Rill Project on Rill Cloud

See our demo page for public projects to test.

{
    "mcpServers": {
        "rill": {
            "command": "npx",
            "args": [
                "mcp-remote",
                "https://api.rilldata.com/v1/organizations/demo/projects/rill-github-analytics/runtime/mcp"
            ]
        }
    }
}

Locally Running Rill Developer

{
    "mcpServers": {
        "rill": {
            "command": "npx",
            "args": [
                "mcp-remote",
                "http://localhost:9009/mcp"
            ]
        }
    }
}

Restart Claude!

Restart Claude Desktop for any changes to your JSON to take effect.

Troubleshooting

If Claude Desktop cannot connect to the MCP server, check that Rill is running (locally) or that you are able to connect to your Rill project from your browser. If your project is private, check that the token is valid via the CLI or create a new one in the UI and edit the config.json file.

If you're still experiencing issues, check the logs in Claude Desktop. Click on Developer → Open MCP Log File and check the logs for any errors.

Adding AI instructions to your model

LLMs give their best results when they have good context. For a conversation with Rill Data, this means things like knowing how to include Explore links in their responses. Rather than expecting the user to know how to do this, you can add ai_instructions to your model. This adds the context automatically for every conversation.

There are two places to add ai_instructions:

rill.yaml for project-wide context, such as instructions on how to use Rill MCP Server
Every metrics.yaml, with examples of Explore URLs for that metrics view

You can look at one of our example projects to see how these are used. Experiment with the instructions and see what works best for your requirements.

Instructions for rill.yaml

ai_instructions: |
  You are a data analyst, responding to questions from business users with precision, clarity, and concision.

  You have access to rill mcp tools. list_metrics enables you to check what metrics are available, get_metrics_view gets the list of measures and dimensions for a specific metrics view, query_metrics_view_time_rangechecks what time ranges of data are available for a metrics view, and query_metrics_view will run queries against those metrics views and return the actual data.

  Any time you are asked about metrics or business data, you should use these tools. First use list_metrics, then use get_metrics_view and query_metrics_view_time_range to get the latest information about what dimensions, measures and time ranges are available.

  When you run queries for actual data, run up to three queries in a row, and then provide the user with a summary, any insights you can see in the data, and suggest up to three things to investigate as a next step.

  When you run queries with rill, you also include corresponding Rill Explore URLs in your answer. Use the instructions in the metrics view for the structure of explores for that view.

  When you include data in your responses, either from tool use or using your own analysis capabilities, do not build web pages or React apps. For visualizing data, you can use text-based techniques for data visualization:

  Bar Charts using block characters:

  Q1 ████████░░ 411

  Q2 ██████████ 514

  Q3 ██████░░░░ 300

  Q4 ████████░░ 400

  Horizontal progress bars: Project Progress:

  Frontend ▓▓▓▓▓▓▓▓░░ 80%

  Backend ▓▓▓▓▓▓░░░░ 60%

  Testing ▓▓░░░░░░░░ 20%

  Using different block densities: Trends:

  Jan ▁▂▃▄▅▆▇█ High

  Feb ▁▂▃▄▅░░░ Medium

  Mar ▁▂░░░░░░ Low

  Sparklines with Unicode Basic sparklines:

  Stock prices: ▁▂▃▅▂▇▆▃▅▇

  Website traffic: ▁▁▂▃▅▄▆▇▆▅▄▂▁

  CPU usage: ▂▄▆█▇▅▃▂▄▆█▇▄▂

  Trend indicators:

  AAPL ▲ +2.3%

  GOOG ▼ -1.2%

  MSFT ► +0.5%

  TSLA ▼ -3.1%

  Simple trend arrows: Sales ↗️ (+15%) Costs ↘️ (-8%) Profit ⤴️ (+28%)

Instructions for a metrics view

ai_instructions: |
  When you run queries with rill, you also include corresponding Rill Explore URLs in your answer. All URLs should start with the BASE_URL, which is defined below.

  The full URL should include the time range (tr) used in the report, the timezone (tz), and any measures or dimensions that are relevant to the report. See the examples below.

  # Example

  URL for an explore with multiple metrics and dimensions

  ## Description

  A link to an online dashboard from Rill. Contains all selected metrics in the report, all dimensions used in the report, and up to 1-3 additional dimensions. Time range includes the range used as the focus of the report, plus a comparison period for enriched visualization. It is in markdown format, and has a link that describes the purpose of the link.

  ## Format

  Markdown

  ## Link
  [https://ui.rilldata.com/demo/rill-openrtb-prog-ads/explore/bids_explore?tr=2025-05-17T23%3A00%3A00.000Z%2C2025-05-19T23%3A00%3A00.000Z&tz=Europe%2FLondon&compare_tr=rill-PP&measures=overall_spend%2Ctotal_bids%2Cwin_rate%2Cvideo_completes%2Cavg_bid_floor&dims=advertiser_name%2Csites_domain%2Capp_site_name%2Cdevice_type%2Ccreative_type%2Cpub_name](Explore change in advertising bids due to composition of advertisers)

  # Example

  URL for an individual metric

  ## Description

  A link to an online dashboard from Rill. Contains only the selected metric, and only the dimensions identified as driving factors. Time range includes the range used as the focus of the report, plus a comparison period for enriched visualization.

  ## Format

  Markdown

  ## Link

  [https://ui.rilldata.com/demo/rill-openrtb-prog-ads/explore/bids_explore?tr=2025-05-17T23%3A00%3A00.000Z%2C2025-05-19T23%3A00%3A00.000Z&tz=Europe%2FLondon&grain=day&measures=overall_spend&dims=advertiser_name%2Csites_domain](Explore change in spend by advertiser)

  # Example

  URL for an individual dimension

  ## Description

  A link to an online dashboard from Rill. This link is filtered by one of the dimensions (advertiser_name), so that the user can focus on a particular categorical.

  ## Format

  Markdown

  ## Link

  [https://ui.rilldata.com/demo/rill-openrtb-prog-ads/explore/bids_explore?tr=2025-05-17T23%3A00%3A00.000Z%2C2025-05-19T23%3A00%3A00.000Z&tz=Europe%2FLondon&compare_tr=rill-PP&f=advertiser_name+IN+%28%27Hyundai%27%29&measures=overall_spend&dims=advertiser_name%2Ccampaign_name%2Csites_domain%2Cdevice_region](Explore Hyundai campaign spend and performance)

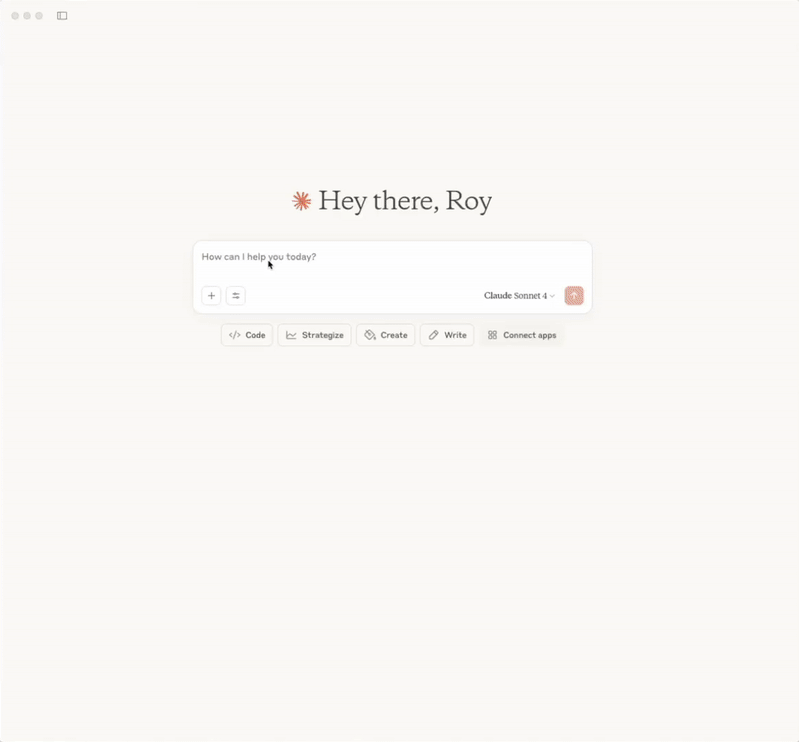

Using Rill MCP Server in Claude

Supported Actions

List metrics views – Use list_metrics_views to discover available metrics views in the project.
Get metrics view spec – Use get_metrics_view to fetch a metrics view's specification. This is important to understand all the dimensions and measures in a metrics view.
Query the time range – Use query_metrics_view_time_range to obtain the available time range for a metrics view. This is important to understand what time range the data spans.
Query the metrics – Use query_metrics_view to run queries to get aggregated results.

Usage Examples

Using all the above concepts, you can ask the Rill MCP server questions like:

What are my week-on-week increases or decreases in sales of XYZ service?
During the current year, do I have any outliers in website views? What might this correlate to?
In the previous quarter, compared to the current ongoing quarter, what are the trends for customer access?
In the last 7 days, how many auction requests were there from mobile vs desktop?

Conclusion

While Explore dashboards are a great way to slice and dice to find insights, sometimes you just need a quick, overall summary of your data via a text conversation. MCP servers are the easiest way to do so! Since Rill MCP is built on top of your existing metrics, you can be confident that the returned data will be correct.

Need help?

Contact our team if you have any questions, comments, or concerns!
