Annotations

Annotations allow you to enrich your metrics view with external data sources or context that isn't directly part of the primary model. This is often used to overlay events, holidays, or deployment markers onto your time series charts.


Requirements​

The underlying table or model used for annotations must strictly follow this schema:

  1. time column (Required): Used to position the annotation on the time series chart.
  2. description column (Required): The text displayed when hovering over the annotation.
  3. time_end column (Optional): Timestamp - If present, defines the end time for a range-based annotation.
  4. duration column (Optional): String/Enum - If present, defines the granularity (e.g., 'day', 'hour', 'minute').selected dashboard time grain. It also forces time and time_end in the UI to be truncated to the selected grain.

Configuring Annotations​

To add an annotation, you need to define a reference to a table or model in your metrics view YAML.

annotations:
  - model: annotations_auction
    name: auction_annotations
    measures: ['requests']

Configuration Properties​

  • model or table: Reference to the data source containing the annotation data.
  • name: A unique identifier for the annotation set.
  • measures (optional): A list of measures to display these annotations alongside. If not specified, the annotation will appear for all measures.

Visual Appearance​

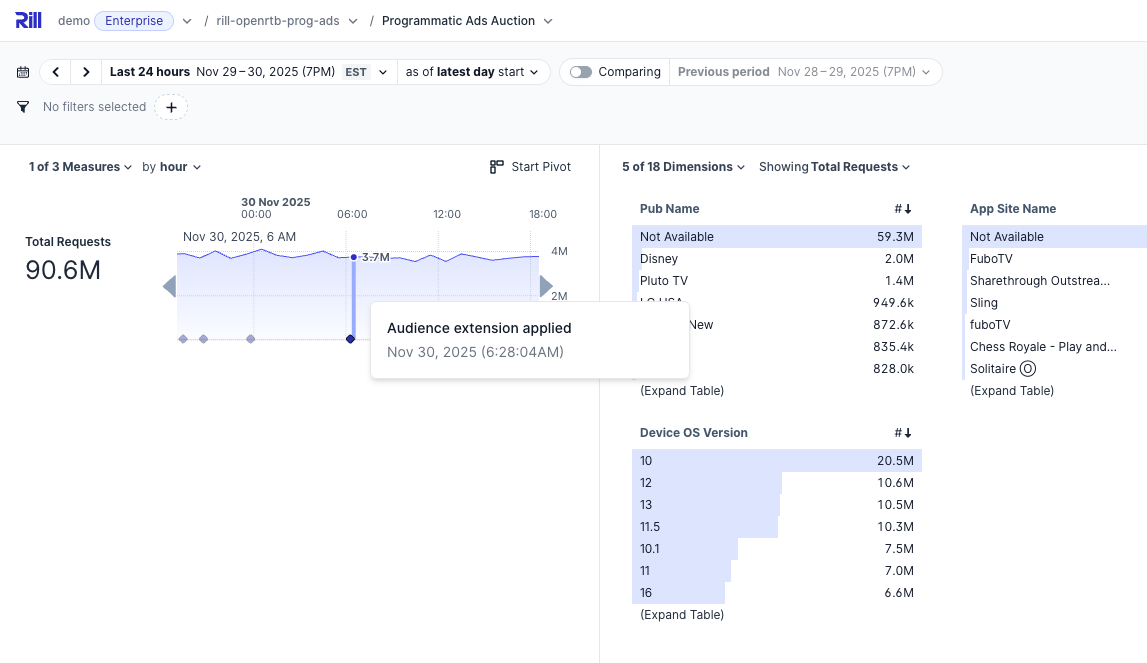

Annotations appear as markers or ranges on the time series charts in your dashboard.

  • Point Annotations: Events with a single time timestamp appear as point markers.
  • Range Annotations: Events with both time and time_end timestamps appear as shaded regions spanning the duration.
  • Hover Details: Hovering over an annotation marker reveals the text from the description column.
info

Refer to the annotations section in Metrics View YAML reference for more details on how to implement annotations.
